Faster Filling, Higher ROI .. Reduces Waste, Increases Profitability .. Up to 4,500 Containers per Hour
Product Specification:
- Fill volumes from 250ml to 30L.
- Exceptional accuracy of up to ±0.2% reduces waste.
- A choice of between 2 - 12 filling heads.
- Flexible; add extra heads to meet increased output requirements.
- Durable and robust, to endure the harshest environments.
- Versatile; nozzles are adjustable to fill foaming and non-foaming products with variable speed filling capacity.
- Minimal down time between liquid and container changeover.
- Storing multiple filling profiles increases efficiency on line throughputs.
- Easy recall of container fill profiles de-skills the machine operation.
- Suitable for low to high viscosity liquids.
- Hygienic 316L stainless steel / PTFE contact parts.
Key Features
• Minimum down time between liquid and container changeover
• Ability to fill a wide range of container sizes
• Quick and easy to clean
• Totally enclosed 304 stainless steel and PVC filling area
• Variable fill speeds can be used during a filling cycle
• Pharmaceutical grade stainless steel box section conveyor with variable speed control

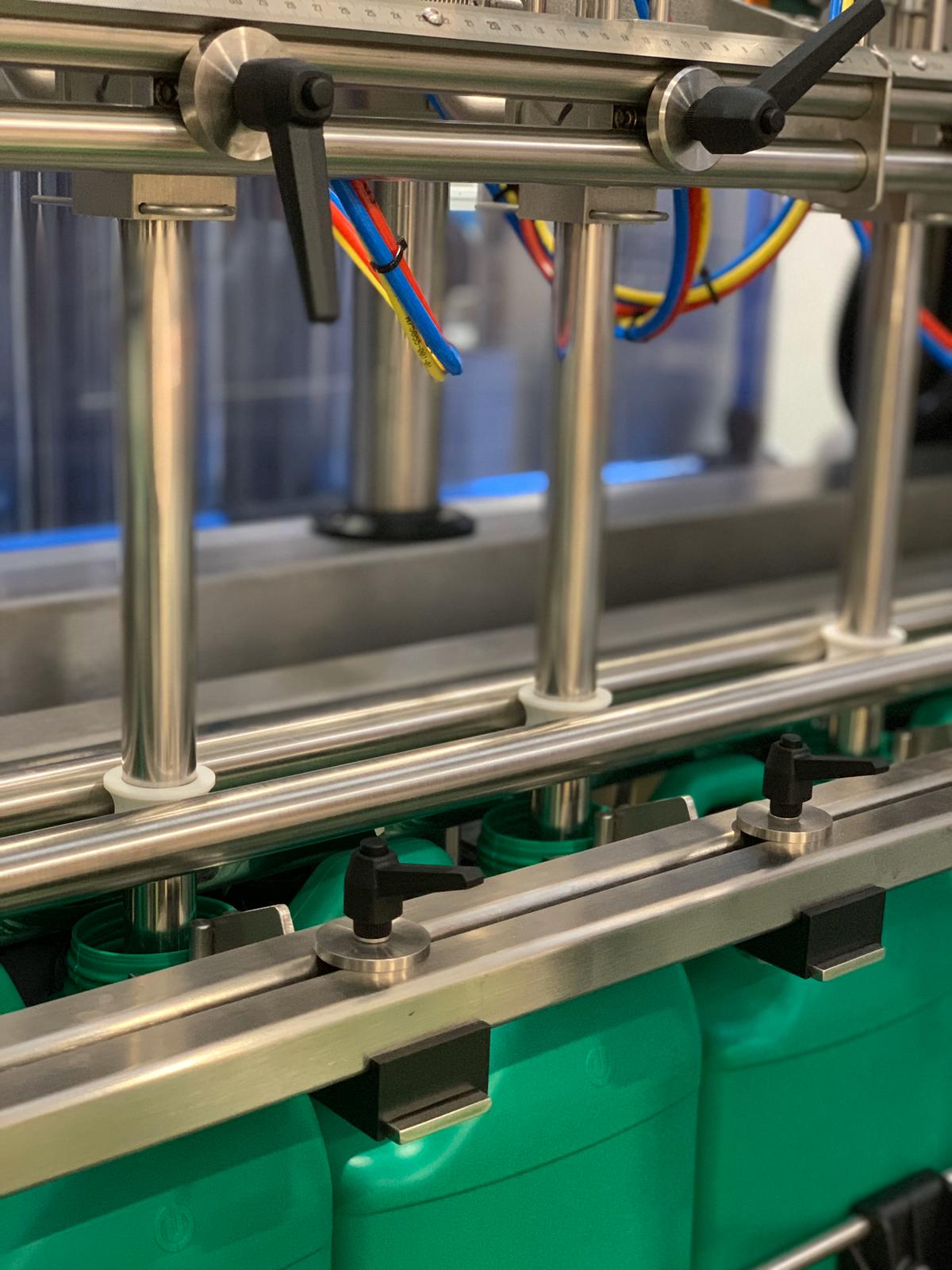

• Nozzles can be static, or programmed to dive and rise whilst filling or fill into neck, depending on product type
• PLC controlled, with recipe-driven HMI
• Fully automatic container handling system includes ‘no container, no fill’ sensing
• Quick change of volume with digital readout.
• ATEX compliant (optional)
• Flushing circuit for in-place cleaning (optional)
Please Note: This machine can be made ATEX compliant for flammable products.
